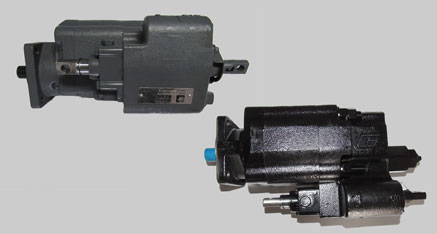

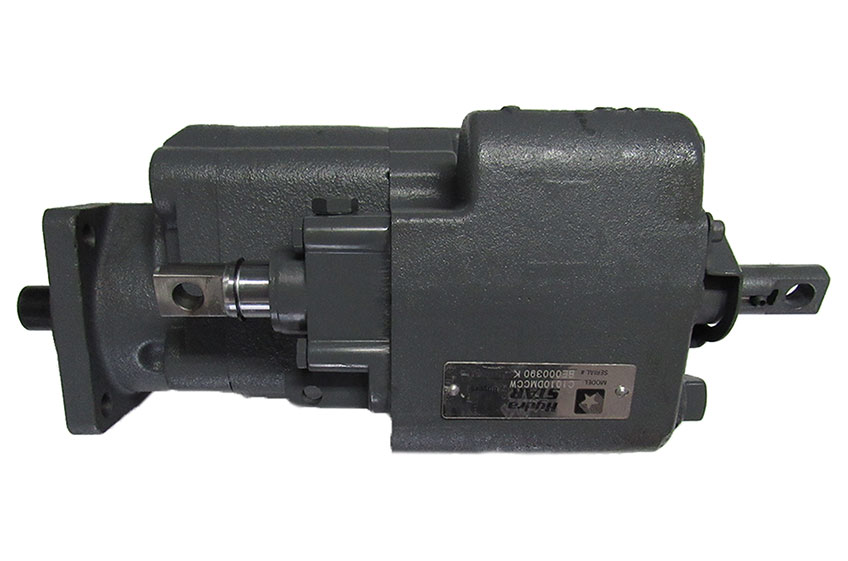

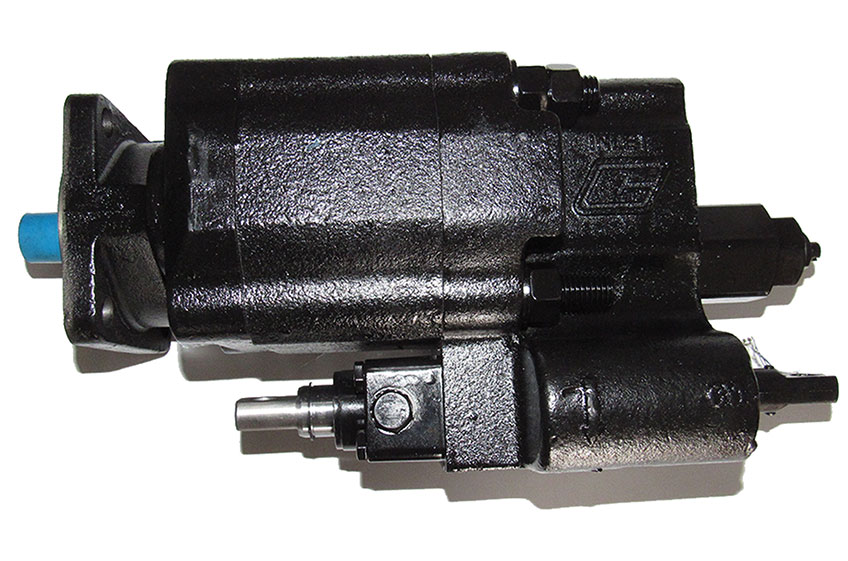

Hydraulic direct mount pump with counter clockwise rotation. Usually used on larger trucks with bodies 12 ft. and longer. 48 gallons per minute at 1,800 rpm's, 2 or 3 line hookup installation with relief valve to protect pump and cylinder. Approximate weight of 76 pounds.

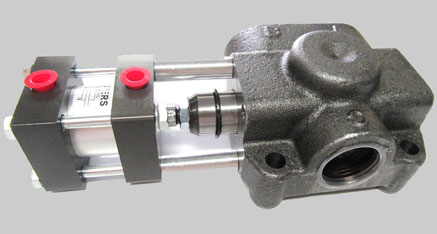

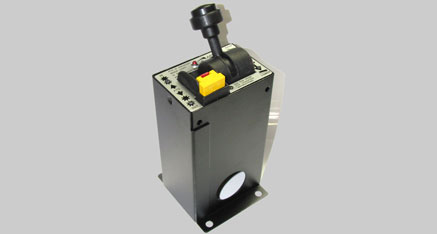

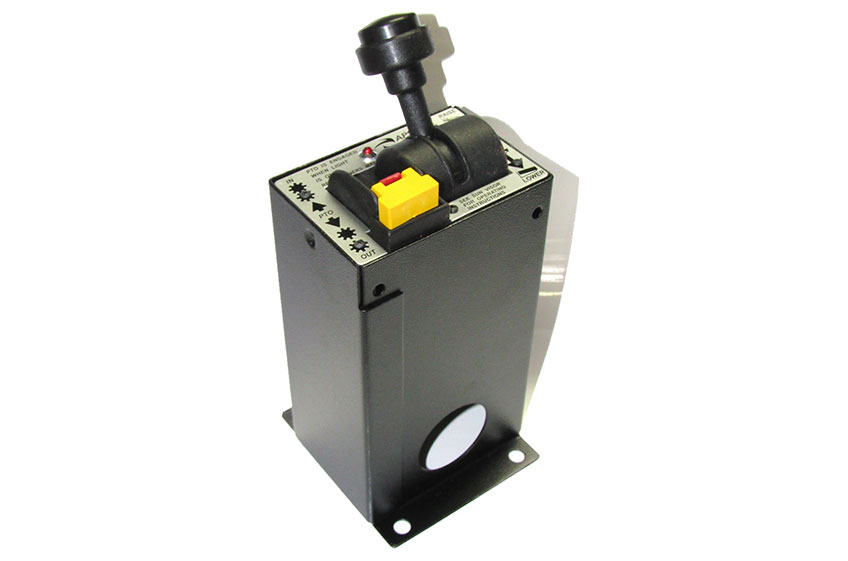

Airshift to Cableshift Shifter
The shifter has dual levers for shift cables to operate the pump and power take off.

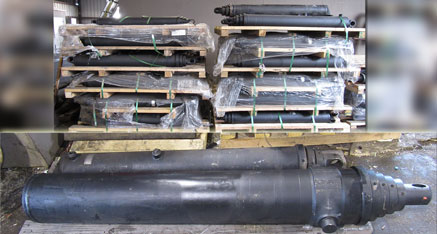

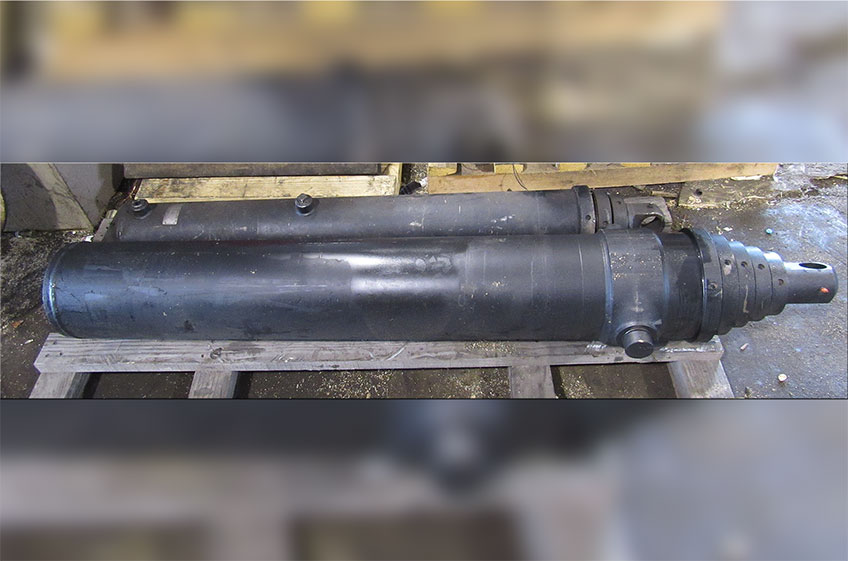

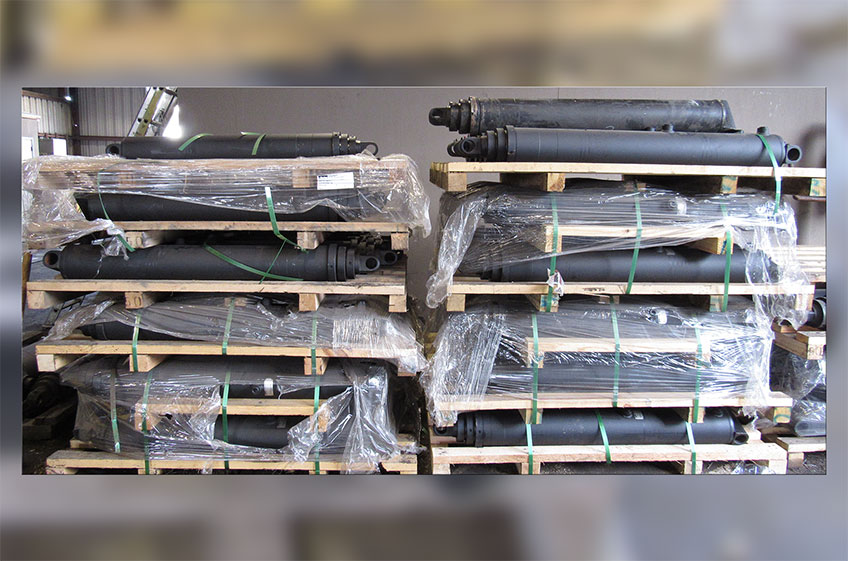

Hydraulic cylinders are usually used with dump bodies ranging in lengths of 8 ft to 20 ft This cylinder is 6 inches in diameter , 3 stage, 130 " stroke, 2000 psi., 51,934 pounds of thrust with a closed length of 56" from pin hole to pin hole. Approximate weight of 260 pounds.

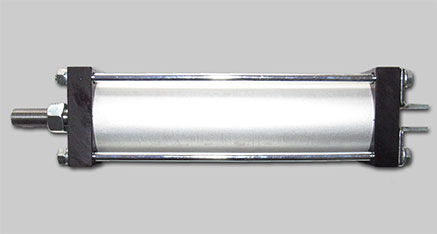

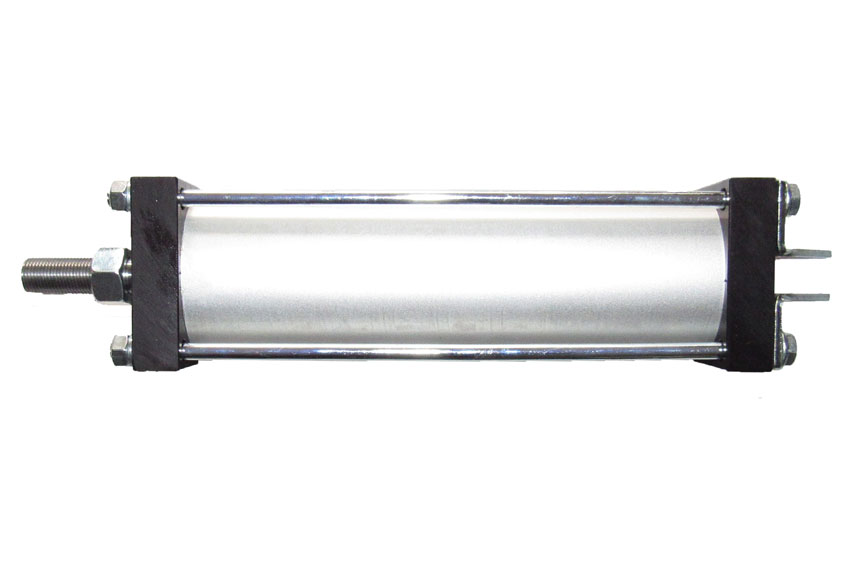

Air Tailgate Cylinder
The 3 1/2" double acting air cylinder is used on regular tailgates. With a 3/4" piston rod, 8" stroke and 1000 lbs. of pressure at 125 P.S.I.

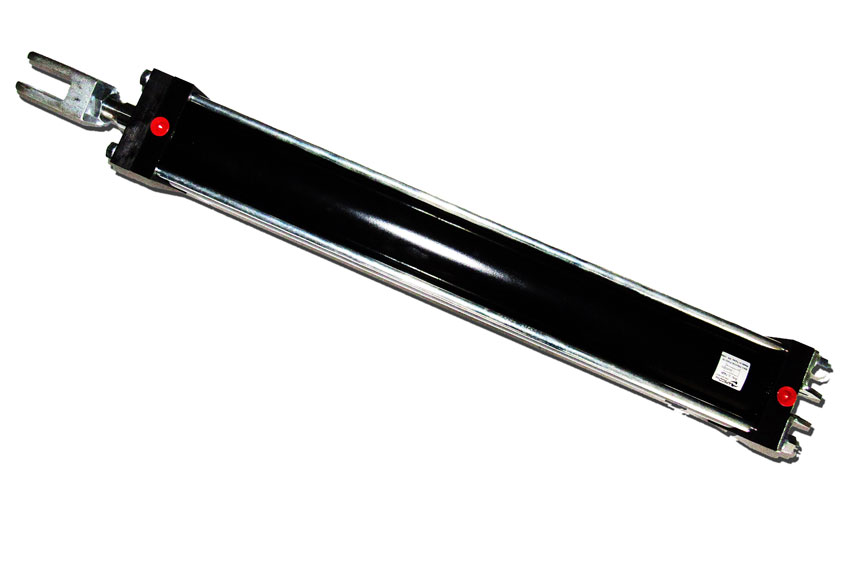

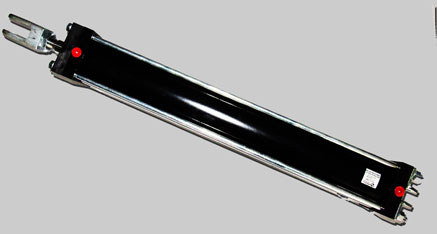

High Lift Cylinder
The 7424 double acting air cylinder is used on the Demolition Dump Beds High Lift Tailgates that are under 60" in height. One on each side.

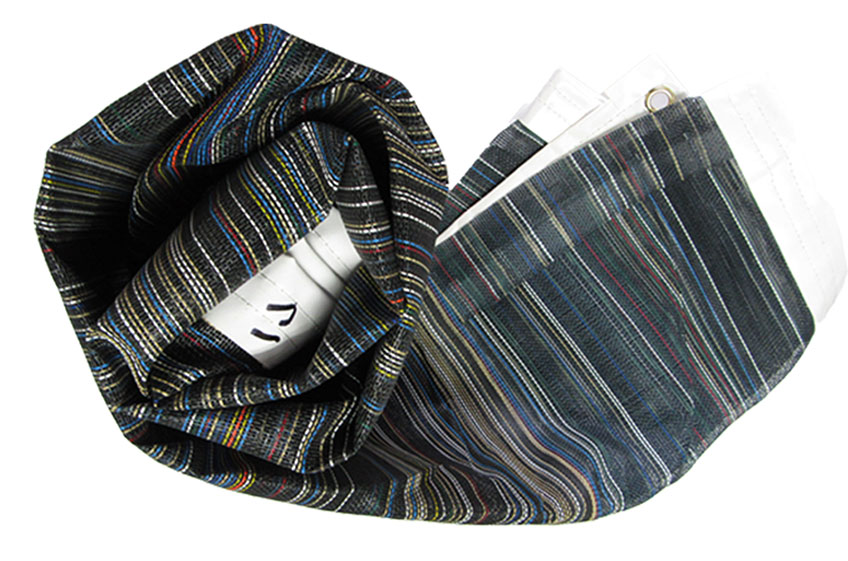

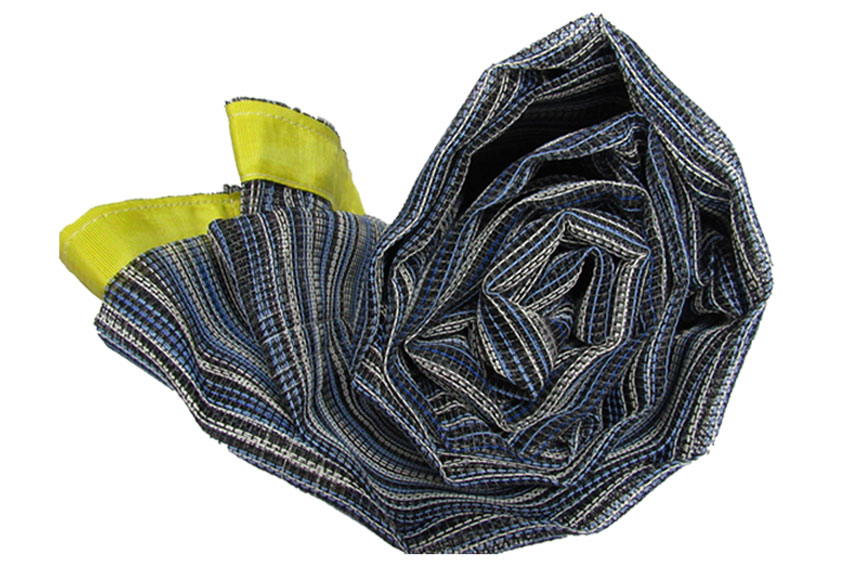

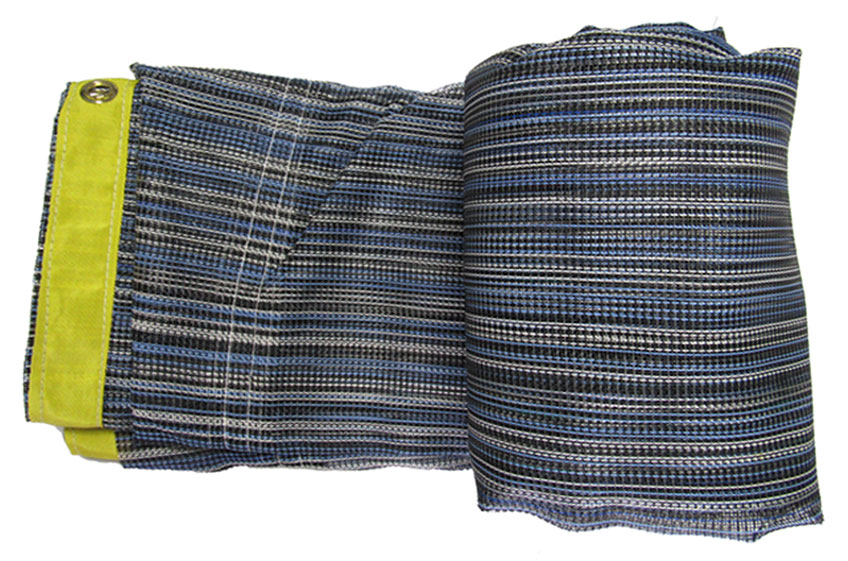

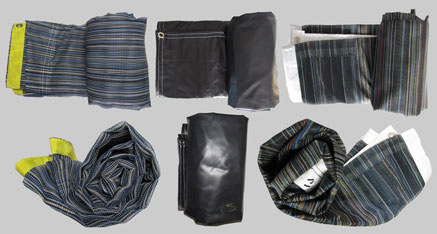

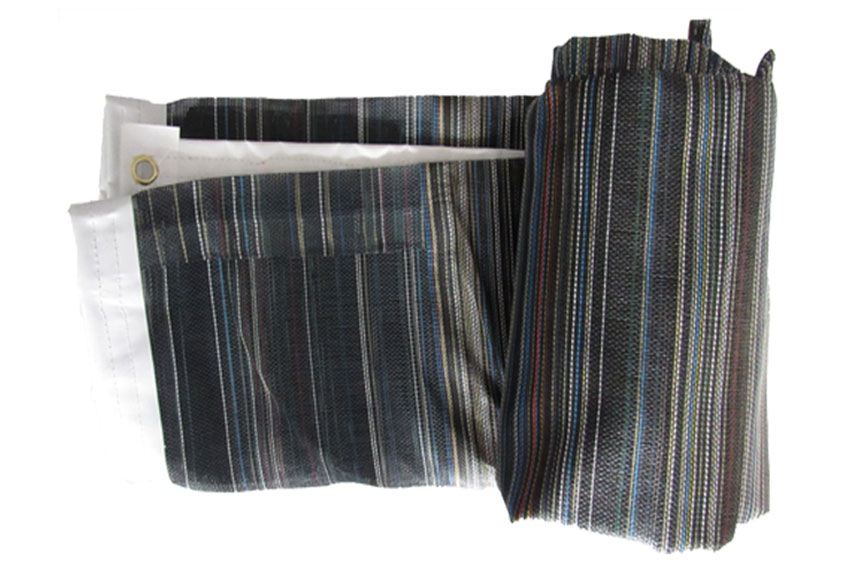

These mesh tarps range in lengths from 8 ft. to 20 ft. They are 92" wide. These tarps are primarily used for hauling brush, sand and gravel.
